điều khiển nhiệt độ, SHIMAX,Temperature controller

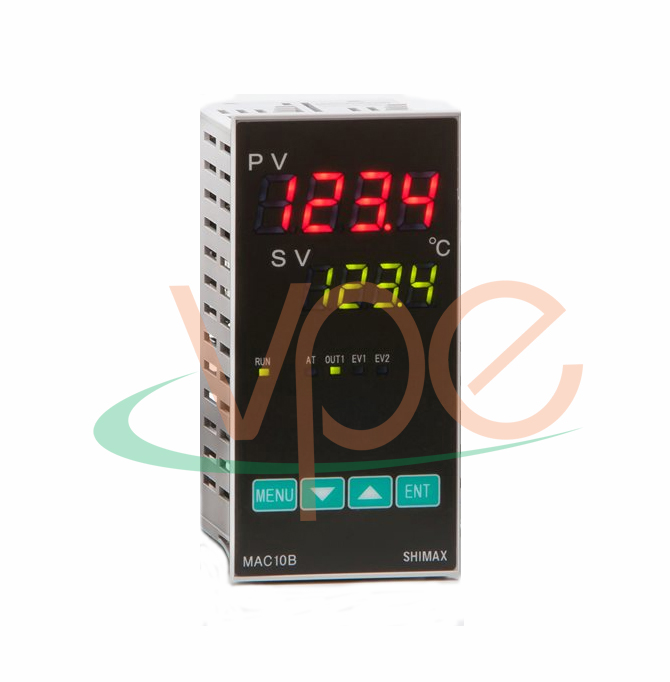

MAC10B-MSF-2N

Item	Code	Specification
1. Serises	MAC10A-	96x96mm Digital Controller
	MAC10B-	48x96mm Digital Controller
	MAC10C-	72x72mm Digital Controller
	MAC10D-	48x48mm Digital Controller
2. Input		M	Thermocouple (K, J, R)
			Resistance bulb (Pt100) Specified curent about 0.25mA
		I	Curent (4~20mA, 0~20mA) Reception resistance 60W or less
3. Control output 1			C	Contact 1a 240V AC 2A (Resistance load)
			S	Voltage pulse 13+-1~1.5V 20mA DC MAX
			I	Curent 4~20 mA DC load resistance 500W MAX
4. Power supply				F-	100-240VAC 50/60Hz
5. Event output					N	None
					1	Event output 1(one point) Contact 1a 240A AC 2A
					2	Event output 1,2 (two points) Contact 1a 240A AC 2A
6. Communication						N	None
						R	RS485
